Box One Carbon 1-1/8 Inch Integrated Headset – Black

Original price was: $99.99.Current price is: $69.99.

Secure Shopping with Safe Payments

Quality and Affordability Combined

Service with a smile, always online.

The quality solution for all your needs.

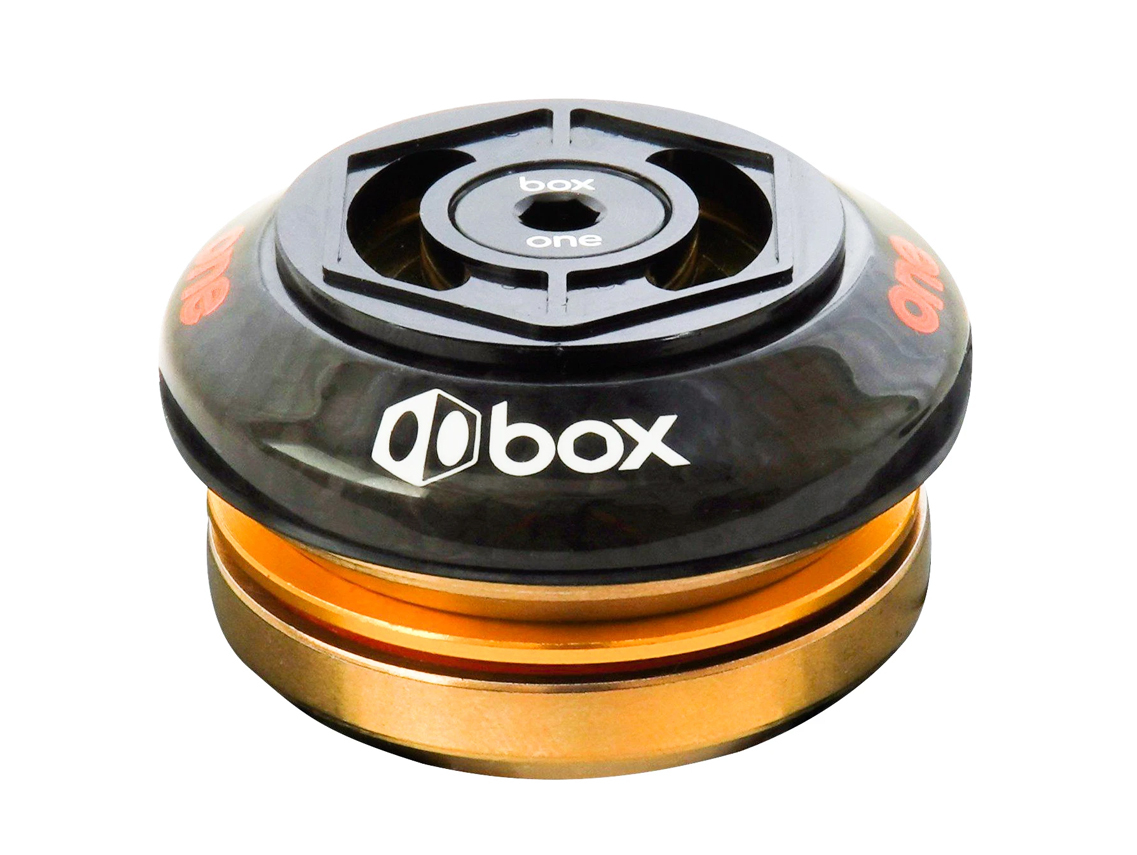

From top to bottom, Box One Carbon Headsets are designed to perform.

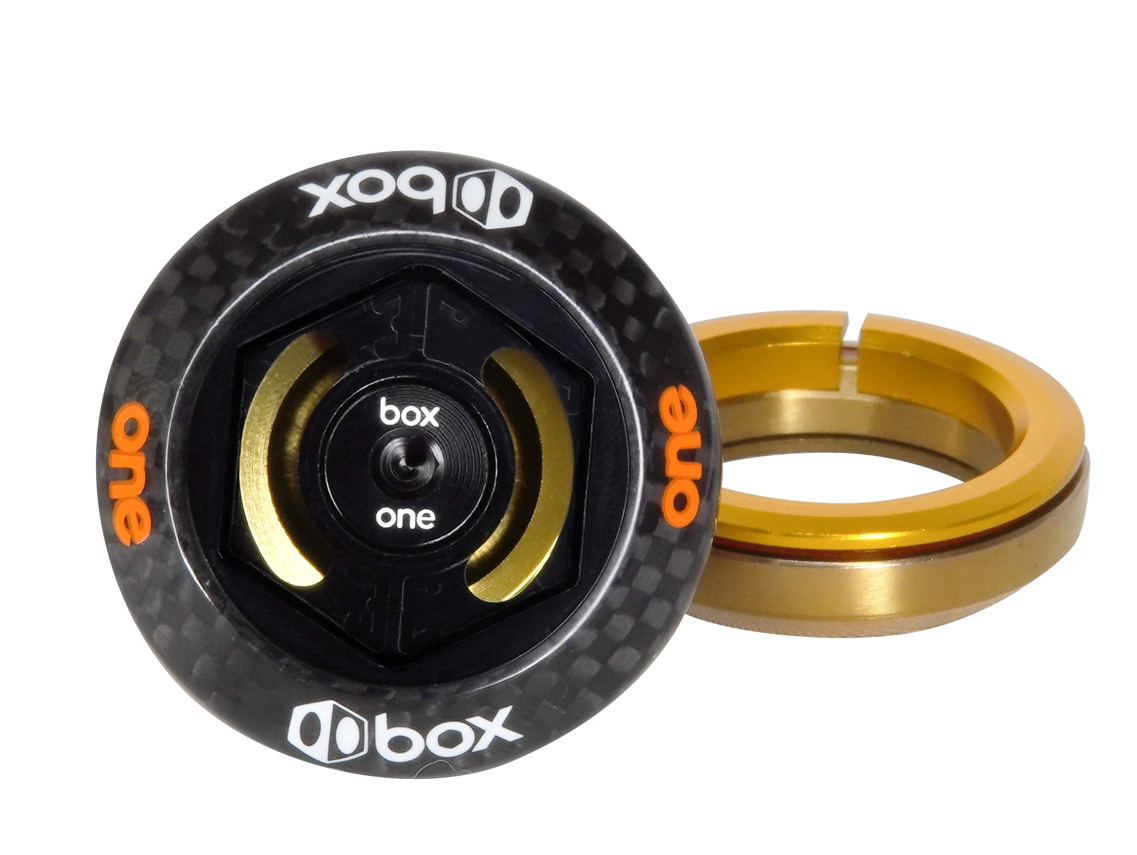

Each unit features a custom CNC-machined aluminum compression cap in the shape of the Box logo with cut-outs to reduce weight. At the center of the compression cap is an anodized aluminum bolt that threads into a gold anodized aluminum expander plug. This expander eliminates the need for a star nut and works with all 1-1/8-inch steerer tubes—even carbon fiber steerer tubes.

The bearing cover is crafted from carbon fiber, which not only adds style but helps shave weight.

And at the heart of the headset are two super-smooth, titanium-nitride coated, sealed, 45×45 bearings. The titanium coating results in a low friction coefficient, increased corrosion resistance, and smoother rolling bearings.

A split crown race makes installation and removal from forks super easy.

Features

Carbon Fiber Bearing Cover
Lightweight Compression Cap
Titanium-Nitride Coated Sealed Bearings
Aluminum Expansion Plug

Specifications

Bearing Angle	45° x 45°
Material	Aluminum, Carbon-Fiber
Recommended Torque	9-10 Nm (Expander), 1.5 Nm (Compression Cap)
SHIS	IS 42/28.6 \| IS 42/28.6
Weight	94 grams / 3.3 ounces
Compatibility	Box One X2 Fork Box One XL Fork Frames with an Integrated NON-Tapered Head Tube Note: This headset is ONLY compatible with frames with a straight integrated headtube. (IS 42/42) Note: This headset is ONLY compatible with straight steerer tube forks.
